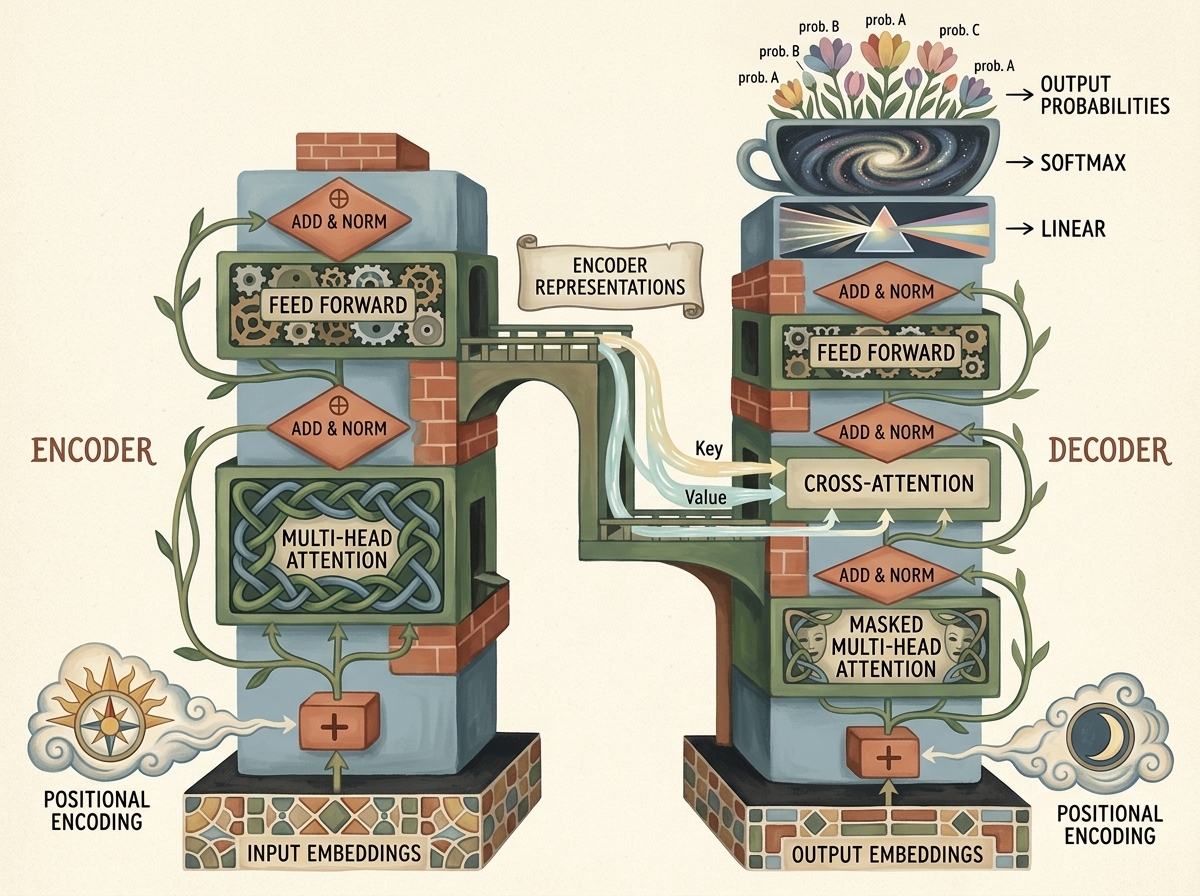

  • 8.2 The Full Encoder-Decoder Architecture & Cross-Attention
• 9. Tokenization Paradigms & Autoregressive Decoding
  • 9.1 Subword Tokenization: BPE & WordPiece
  • 9.2 Autoregressive Text Generation Strategies
• 10. Computer Vision Meets Transformers: The Vision Transformer (ViT)
  • 10.1 Image Patch Extraction as Tokenization
  • 10.2 The Complete ViT Pipeline
  • 10.3 Inductive Biases: CNNs vs. Vision Transformers
• 11. Computational Complexity & Memory Profiling
  • 11.1 Self-Attention Quadratic Scaling
• 12. Summary & Key Takeaways

1. The Architectural Paradigm Shift to Transformers

Before the advent of the Transformer architecture (Vaswani et al., 2017), deep learning architectures for sequence modeling were overwhelmingly dominated by Recurrent Neural Networks (RNNs), Long Short-Term Memory networks (LSTMs), and Gated Recurrent Units (GRUs). While these models naturally captured temporal sequences through a recurrent hidden state $h_t = f(h_{t-1}, x_t)$, they suffered from two catastrophic structural bottlenecks:

1. The Sequential Execution Bottleneck ($O(N)$ Computational Path): Because $h_t$ strictly depends on $h_{t-1}$, forward and backward passes cannot be parallelized across the time dimension. Compute clusters packed with thousands of GPU cores sit idling, constrained by sequential memory transfers.
2. Gradient Attenuation Across Temporal Distance: Information passing across long token spans decays exponentially or explodes ($W_{hh}^T$ repeated multiplications), limiting effective historical context to a few dozen steps despite gating mechanisms.

Convolutional Neural Networks (CNNs) alleviated the parallelization issue by computing local 1D convolutions across the sequence simultaneously. However, a standard 1D CNN with kernel size $K$ has a fixed local receptive field; capturing dependencies between tokens separated by distance $L$ requires stacking $O(L / K)$ convolutional layers (or $O(\log L)$ with dilated convolutions).

flowchart TD
    subgraph S1 ["1. RNN / LSTM: Sequential Bottleneck"]
        direction TB
        R1["x₁ → h₁"] --> R2["x₂ → h₂"] --> R3["x₃ → h₃"]
        R_DESC["O(N) sequential dependency • Cannot parallelize across time • Vanishing gradients"]
    end

    subgraph S2 ["2. 1D CNN: Local Receptive Field Limit"]
        direction TB
        C1["Input Sequence"] --> C2["1D Convolution Layers"]
        C_DESC["Parallelizable, but requires O(L/K) stacked layers for long-range context"]
    end

    subgraph S3 ["3. Transformer: Fully Parallel Self-Attention"]
        direction TB
        T1["All Tokens [x₁, x₂, ..., xₙ]"] ==> T2["Self-Attention: O(1) Direct Path Length"] ==> T3["Contextual Outputs [y₁, y₂, ..., yₙ]"]
        T_DESC["All-to-all direct pairwise connections • 100% parallel tensor operations on GPUs"]
    end

    S1 ==> S2 ==> S3

    style S1 fill:#1a1a2e,stroke:#e94560,stroke-width:2px,color:#fff
    style S2 fill:#16213e,stroke:#0f3460,stroke-width:2px,color:#fff
    style S3 fill:#1a3a2a,stroke:#52b788,stroke-width:2px,color:#fff

The Transformer eliminated recurrence and convolutions entirely, replacing them with Self-Attention. Every token interacts directly with every other token in the sequence in a single layer ($O(1)$ path length), and the entire computation maps cleanly to dense matrix multiplications perfectly suited for modern Tensor Cores.

2. A Motivating Example: Generating Names Character by Character

To master Transformer mechanics from first principles without drowning in linguistic abstraction, we begin with a foundational generative modeling task: building an autoregressive model that learns the statistical structure of human names and generates novel, plausible names character by character.

2.1 Vocabulary Construction & Tokenization

Every natural language processing pipeline begins with a discrete symbol alphabet termed a Vocabulary ($\mathcal{V}$). In our character-level model, $\mathcal{V}$ consists of:

• The 26 lowercase English characters: 'a' through 'z'.
• A dedicated sentinel boundary character: '$'. The sentinel serves a dual operational role: it acts both as a Start-of-Sequence (SOS) prompt signaling the model to begin generating, and as an End-of-Sequence (EOS) token signaling that name generation is complete.

Mathematically, tokenization is a bijective mapping between discrete characters and zero-indexed contiguous integers:

$$ \text{stoi}: c \in \mathcal{V} \mapsto i \in {0, 1, \dots, |\mathcal{V}|-1} $$

$$ \text{itos}: i \in {0, 1, \dots, |\mathcal{V}|-1} \mapsto c \in \mathcal{V} $$

Let us implement this foundational tokenizer in PyTorch:

import torch
import torch.nn as nn
import torch.nn.functional as F

# Define full character alphabet and special sequence boundary sentinel
special_char = '$'
alphabet = [chr(i) for i in range(ord('a'), ord('z') + 1)]
vocab = [special_char] + alphabet

# Construct bidirectional mapping dictionaries
stoi = {char: idx for idx, char in enumerate(vocab)}
itos = {idx: char for idx, char in enumerate(vocab)}

vocab_size = len(vocab)
print(f"Vocabulary Size: {vocab_size} (Indices: 0 to {vocab_size - 1})")
print(f"Example encoding: 'john' -> {[stoi[c] for c in '$john$']}")

2.2 Autoregressive Causal Factorization

Given an ordered sequence of discrete tokens $\mathbf{x} = (x_1, x_2, \dots, x_T)$, the joint probability distribution $P(\mathbf{x})$ can be rigorously decomposed using the probability chain rule:

$$ P(x_1, x_2, \dots, x_T) = \prod_{t=1}^T P(x_t \mid x_1, x_2, \dots, x_{t-1}) = \prod_{t=1}^T P(x_t \mid x_{<t}) $$

The goal of our generative model is to approximate the true conditional probability distribution $P(x_t \mid x_{<t})$ over all possible vocabulary tokens at each step $t$, parameterizing it as a neural network $P_\theta(x_t \mid x_{<t})$.

3. Self-Supervised Learning & Limits of the Bigram Model

Before implementing multi-head self-attention, we evaluate the baseline statistical model: the Bigram Language Model.

3.1 Self-Supervised Paradigm

Self-supervised learning eliminates the requirement for expensive human annotations. The raw input data itself provides both the training inputs and the training supervision targets:

• Given any input string, such as "$sada$", the network receives prefix sub-windows as inputs and is tasked with predicting the immediate subsequent token as the ground-truth label.
• The supervisor is simply the subsequent character already present in the unannotated corpus.

3.2 The Bigram Matrix Formulation

A Bigram model makes a strict first-order Markov assumption: the conditional probability of the current token $x_t$ depends exclusively on the single immediately preceding token $x_{t-1}$, discarding all earlier history:

$$ P(x_t \mid x_1, x_2, \dots, x_{t-1}) \approx P(x_t \mid x_{t-1}) $$

We compute the maximum likelihood transition probabilities by empirical frequency counting across our training dataset:

$$ N(c_i, c_j) = \sum_{k=1}^M \sum_{t=1}^{T_k - 1} \mathbb{I}(x_{k, t} = c_i \land x_{k, t+1} = c_j) $$

$$ P(c_j \mid c_i) = \frac{N(c_i, c_j) + \alpha}{\sum_{k=1}^{|\mathcal{V}|} (N(c_i, c_k) + \alpha)} $$

where $\alpha \ge 0$ is a Laplace smoothing constant preventing zero probabilities for unseen character transitions.

# Create sample training corpus of names
sample_names = ["sada", "john", "emma", "olivia", "liam", "noah", "ava", "lucas"]

# Initialize co-occurrence count matrix: [Vocab_Size, Vocab_Size]
bigram_counts = torch.zeros((vocab_size, vocab_size), dtype=torch.int32)

for name in sample_names:
    full_seq = special_char + name + special_char
    for ch1, ch2 in zip(full_seq[:-1], full_seq[1:]):
        idx1, idx2 = stoi[ch1], stoi[ch2]
        bigram_counts[idx1, idx2] += 1

# Convert counts to normalized transition probability matrix (with Laplace smoothing alpha=1)
alpha = 1.0
bigram_probs = (bigram_counts.float() + alpha)
bigram_probs /= bigram_probs.sum(dim=1, keepdim=True)

print(f"P('a' following '$'): {bigram_probs[stoi['$'], stoi['a']]:.4f}")
print(f"P('o' following 'j'): {bigram_probs[stoi['j'], stoi['o']]:.4f}")

3.3 Theoretical Failure Modes of N-Gram Baselines

While fast and analytically tractable, n-gram models collapse when applied to complex language tasks:

1. Context Window Starvation: A bigram model cannot remember that a name opened with 'j' and 'o' once it reaches character 4. It cannot distinguish whether an 'a' ending is appropriate for feminine or masculine name conventions established 5 letters earlier.
2. Combinatorial State Explosion: Attempting to expand the Markov context to $N$ characters causes the transition table to explode exponentially in size: $|\mathcal{V}|^N$. For $|\mathcal{V}| = 27$ and $N = 8$, the parameter count is $27^8 \approx 2.82 \times 10^{11}$ entries—demanding hundreds of gigabytes of RAM while suffering from acute sparsity.

4. Generating Training Data: Autoregressive Prefixes & Targets

To train a neural network with backpropagation, we must convert each raw name into structured pairs of input subsequences and target labels.

Given a tokenized name sequence such as "$sada$" represented by token integers [0, 1, 4, 1, 0], we extract expanding prefix windows:

Let us implement a modular PyTorch Dataset that dynamically generates these training pairs:

from torch.utils.data import Dataset, DataLoader

class CharAutoregressiveDataset(Dataset):
    """
    Constructs autoregressive input prefixes and corresponding next-token targets
    from a list of raw strings.
    """
    def __init__(self, names, stoi, block_size):
        self.block_size = block_size
        self.stoi = stoi
        self.inputs = []
        self.targets = []

        for name in names:
            encoded = [stoi[special_char]] + [stoi[c] for c in name] + [stoi[special_char]]
            for i in range(1, len(encoded)):
                # Extract prefix context up to current length
                subseq = encoded[:i]
                target = encoded[i]

                # Truncate or left-pad with special_char to maintain fixed block_size
                if len(subseq) > block_size:
                    subseq = subseq[-block_size:]
                else:
                    subseq = [stoi[special_char]] * (block_size - len(subseq)) + subseq

                self.inputs.append(torch.tensor(subseq, dtype=torch.long))
                self.targets.append(torch.tensor(target, dtype=torch.long))

        self.inputs = torch.stack(self.inputs)
        self.targets = torch.stack(self.targets)

    def __len__(self):
        return len(self.inputs)

    def __getitem__(self, idx):
        return self.inputs[idx], self.targets[idx]

# Instantiate dataset with a fixed context window of 6 characters
dataset = CharAutoregressiveDataset(sample_names, stoi, block_size=6)
dataloader = DataLoader(dataset, batch_size=4, shuffle=True)

sample_x, sample_y = next(iter(dataloader))
print(f"Batch X shape: {sample_x.shape} (Batch, Block_Size)")
print(f"Batch Y shape: {sample_y.shape} (Batch)")

5. Token Embeddings & The Limits of Linear Flattening

How do discrete integer tokens enter a continuous, differentiable neural network?

5.1 One-Hot Encoding vs. Continuous Dense Embeddings

The most naive continuous representation is One-Hot Encoding: representing token $i$ as a sparse vector $\mathbf{e}_i \in {0, 1}^{|\mathcal{V}|}$ where index $i$ is 1 and all other positions are 0. However, one-hot vectors suffer from acute geometric limitations:

• Orthogonality: For all $i \neq j$, $\mathbf{e}_i^T \mathbf{e}_j = 0$. The Euclidean distance between 'a' and 'e' (both vowels) is exactly the same as between 'a' and 'z'. There is zero notion of semantic or phonetic proximity.
• Dimensional Inefficiency: For large vocabularies (e.g. $|\mathcal{V}| = 50,000$ in modern LLMs), sparse one-hot vectors waste immense GPU memory bandwidth.

5.2 The Embedding Lookup Table

An Embedding Layer solves this by maintaining a trainable dense parameter matrix $W_E \in \mathbb{R}^{|\mathcal{V}| \times d_{\text{model}}}$, where $d_{\text{model}}$ is the embedding dimensionality.

In PyTorch, nn.Embedding(num_embeddings, embedding_dim) performs an $O(1)$ memory lookup into $W_E$ rather than a matrix multiplication:

# Initialize continuous embedding table
embedding_dim = 3  # Low dimension for pedagogical visualization
emb_table = nn.Embedding(num_embeddings=vocab_size, embedding_dim=embedding_dim)

# Look up representations for tokens [0, 5, 2]
tokens_to_lookup = torch.tensor([0, 5, 2], dtype=torch.long)
dense_vectors = emb_table(tokens_to_lookup)

print(f"Retrieved dense vectors shape: {dense_vectors.shape}")
print(f"Vector for index 5:\n{dense_vectors[1].detach()}")

5.3 The Naive Baseline: Embedding + Flattening to Linear Layers

Suppose we attempt to model sequences using standard feedforward networks: we embed each token, flatten the resulting 2D sequence matrix $(T \times d_{\text{model}})$ into a flat 1D vector of length $T \cdot d_{\text{model}}$, and pass it through successive linear layers.

Why does this naive approach inevitably fail?

1. Rigid Window Constraints: The first linear layer has input weight dimensions $W_1 \in \mathbb{R}^{d_{\text{hidden}} \times (T \cdot d_{\text{model}})}$. If a sequence has length $T+1$, the matrix multiplication fails immediately due to shape mismatch.
2. Lack of Position Invariance: A pattern appearing at indices $0..2$ activates entirely different weights than the exact same pattern appearing at indices $3..5$. The model cannot generalize knowledge learned at the beginning of an input to later positions.
3. Quadratic Parameter Scaling: As context length $T$ grows from 64 to 2048, the linear layer weights explode to tens of millions of parameters for a single projection.

5.4 3D Geometric Space of Learned Embeddings

When embedding parameters are optimized via backpropagation, the gradient descent updates organize tokens geometrically based on their semantic and syntactic co-occurrence statistics.

Key Insight: In embedding space, dot-product similarity reflects contextual substitutability: two characters that frequently follow the same prefix patterns will be pulled closer together by backpropagation gradients, minimizing cross-entropy loss.

6. The Mechanics of Attention: From Dot Product to Causal Self-Attention

To solve the limitations of linear flattening and recurrent bottlenecks, the Transformer introduces Self-Attention. Rather than forcing tokens through fixed positional linear connections, self-attention allows each token to dynamically route information from any other token based on content similarity.

6.1 Conceptual Analogy: Queries, Keys, and Values

The attention mechanism operates as a continuous, differentiable database lookup:

• Query ($\mathbf{q}_i$): What token $i$ is currently searching for (e.g., “I am a consonant at position 3; I need preceding vowels”).
• Key ($\mathbf{k}_j$): What token $j$ contains or offers (e.g., “I am an ‘a’, a vowel located at position 1”).
• Value ($\mathbf{v}_j$): The actual informational content that token $j$ transmits if a match occurs.

Given an input representation matrix $X \in \mathbb{R}^{T \times d_{\text{in}}}$, we project each token into Query, Key, and Value spaces using three learned projection matrices $W_Q, W_K \in \mathbb{R}^{d_{\text{in}} \times d_k}$ and $W_V \in \mathbb{R}^{d_{\text{in}} \times d_v}$:

$$ Q = X W_Q, \quad K = X W_K, \quad V = X W_V $$

6.2 Dot-Product Alignment & Value Aggregation

The affinity score between Query token $i$ and Key token $j$ is quantified by their dot product:

$$ \text{Score}_{i, j} = \mathbf{q}_i \cdot \mathbf{k}_j^T $$

A higher dot product indicates greater directional alignment in the latent feature space.

Once normalized, the attention weights $\alpha_{i, j}$ compute the output vector $\mathbf{y}_i$ as a convex combination of all value vectors:

$$ \mathbf{y}_i = \sum_{j=1}^T \alpha_{i, j} \mathbf{v}_j $$

6.3 Why Scale by $\sqrt{d_k}$? (The Scaled Dot-Product)

Why does the canonical formula divide $Q K^T$ by $\sqrt{d_k}$? Assume the components of $\mathbf{q}_i$ and $\mathbf{k}_j$ are independent random variables with zero mean and unit variance:

$$ \mathbb{E}[q_{i, m}] = 0, \quad \text{Var}(q_{i, m}) = 1, \quad \mathbb{E}[k_{j, m}] = 0, \quad \text{Var}(k_{j, m}) = 1 $$

The dot product is the sum of $d_k$ independent random variables:

$$ S_{i, j} = \sum_{m=1}^{d_k} q_{i, m} k_{j, m} $$

Using the properties of independent random variables:

$$ \mathbb{E}[S_{i, j}] = \sum_{m=1}^{d_k} \mathbb{E}[q_{i, m}] \mathbb{E}[k_{j, m}] = 0 $$

$$ \text{Var}(S_{i, j}) = \sum_{m=1}^{d_k} \text{Var}(q_{i, m} k_{j, m}) = \sum_{m=1}^{d_k} \text{Var}(q_{i, m}) \text{Var}(k_{j, m}) = d_k \cdot (1 \cdot 1) = d_k $$

When $d_k$ is large (e.g., $d_k = 64$ or $128$ in production models), the variance of the logits is $64$ or $128$, meaning dot products regularly take values exceeding $\pm 20$. Passing such large magnitudes into $\text{softmax}(z)_i = \frac{e^{z_i}}{\sum_k e^{z_k}}$ pushes the exponential function into extreme saturation:

• The highest logit receives a probability close to $1.0$, while all other tokens drop to $0.0$.
• In this saturated regime, the gradient of the softmax function vanishes: $\frac{\partial \text{softmax}(z)_i}{\partial z_j} \to 0$. Backpropagation stalls completely.

Dividing by $\sqrt{d_k}$ normalizes the variance back to $1.0$:

$$ \text{Var}\left(\frac{S_{i, j}}{\sqrt{d_k}}\right) = \frac{1}{d_k} \text{Var}(S_{i, j}) = \frac{d_k}{d_k} = 1 $$

This preserves healthy gradient flow across deep networks regardless of embedding dimension.

6.4 Autoregressive Causal Masking

In generative language modeling, token $i$ must never be allowed to attend to future tokens $j > i$. If token 2 could see token 3 during training, the next-token prediction task becomes a trivial copy operation, and the model will fail entirely during autoregressive inference when future tokens do not yet exist.

We enforce causality mathematically by adding an upper-triangular Causal Mask $M \in {0, -\infty}^{T \times T}$ to the scaled dot-product matrix prior to softmax normalization:

$$ M_{i, j} = \begin{cases} 0 & \text{if } j \le i \ -\infty & \text{if } j > i \end{cases} $$

$$ \text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}} + M\right) V $$

Because $e^{-\infty} = 0$, any position where $j > i$ receives an attention weight of exactly $0.0$.

7. The GPT-Style Decoder Block Architecture

We now assemble self-attention into the complete Decoder Block that powers modern generative models such as GPT-4 and LLaMA.

7.1 Multi-Head Attention (MHA)

A single attention head averages all information across the embedding dimensions. However, a token may simultaneously need to track syntactic dependencies (e.g., subject-verb agreement) and semantic references (e.g., pronoun antecedents). Multi-Head Attention projects queries, keys, and values into $h$ separate lower-dimensional subspaces of dimension $d_k = d_{\text{model}} / h$:

$$ \text{MultiHead}(Q, K, V) = \text{Concat}(\text{head}_1, \dots, \text{head}_h) W_O $$

$$ \text{where} \quad \text{head}_i = \text{Attention}(Q W_i^Q, K W_i^K, V W_i^V) $$

and $W_O \in \mathbb{R}^{d_{\text{model}} \times d_{\text{model}}}$ is an output projection matrix blending information across heads.

7.2 Deep Dive: Batch Normalization vs. Layer Normalization

In computer vision (Chapter 8), we relied extensively on Batch Normalization. In Transformers, however, Batch Normalization fails catastrophically and is replaced by Layer Normalization (Ba et al., 2016).

Let us examine the exact mathematical formulations:

Batch Normalization (Across Batch Dimension $B$):

For each feature $j \in {1, \dots, D}$, statistics are computed across the batch:

$$ \mu_j = \frac{1}{B} \sum_{i=1}^B x_{i, j}, \quad \sigma_j^2 = \frac{1}{B} \sum_{i=1}^B (x_{i, j} - \mu_j)^2 $$

$$ \hat{x}{i, j} = \frac{x{i, j} - \mu_j}{\sqrt{\sigma_j^2 + \epsilon}} \cdot \gamma_j + \beta_j $$

Layer Normalization (Across Feature Dimension $D$):

For each individual sample $i \in {1, \dots, B}$, statistics are computed across its own features:

$$ \mu_i = \frac{1}{D} \sum_{j=1}^D x_{i, j}, \quad \sigma_i^2 = \frac{1}{D} \sum_{j=1}^D (x_{i, j} - \mu_i)^2 $$

$$ \hat{x}{i, j} = \frac{x{i, j} - \mu_i}{\sqrt{\sigma_i^2 + \epsilon}} \cdot \gamma_j + \beta_j $$

7.3 Complete PyTorch Implementation of a GPT-Style Language Model

We now write the complete, micro-modular PyTorch implementation of the decoder architecture:

class CausalSelfAttention(nn.Module):
    """
    Multi-head masked self-attention module with causal lower-triangular masking.
    """
    def __init__(self, d_model, n_heads, block_size, dropout=0.1):
        super().__init__()
        assert d_model % n_heads == 0, "d_model must be divisible by n_heads"
        self.d_model = d_model
        self.n_heads = n_heads
        self.d_k = d_model // n_heads

        # Fused linear projection for Query, Key, and Value
        self.c_attn = nn.Linear(d_model, 3 * d_model)
        self.c_proj = nn.Linear(d_model, d_model)

        self.attn_dropout = nn.Dropout(dropout)
        self.resid_dropout = nn.Dropout(dropout)

        # Register persistent causal mask buffer in DAG
        mask = torch.tril(torch.ones(block_size, block_size)).view(1, 1, block_size, block_size)
        self.register_buffer("causal_mask", mask, persistent=False)

    def forward(self, x):
        B, T, C = x.shape  # Batch, Time (Sequence Length), Channels (d_model)

        # Calculate Q, K, V and split into heads: (B, n_heads, T, d_k)
        q, k, v = self.c_attn(x).split(self.d_model, dim=2)
        q = q.view(B, T, self.n_heads, self.d_k).transpose(1, 2)
        k = k.view(B, T, self.n_heads, self.d_k).transpose(1, 2)
        v = v.view(B, T, self.n_heads, self.d_k).transpose(1, 2)

        # Scaled dot-product: (B, n_heads, T, T)
        att = (q @ k.transpose(-2, -1)) * (1.0 / (self.d_k ** 0.5))
        att = att.masked_fill(self.causal_mask[:, :, :T, :T] == 0, float('-inf'))
        att = F.softmax(att, dim=-1)
        att = self.attn_dropout(att)

        # Weighted sum of values: (B, n_heads, T, d_k) -> (B, T, C)
        y = att @ v
        y = y.transpose(1, 2).contiguous().view(B, T, C)

        return self.resid_dropout(self.c_proj(y))


class FeedForward(nn.Module):
    """
    Position-wise two-layer MLP with expansion factor 4 and GELU activation.
    """
    def __init__(self, d_model, dropout=0.1):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(d_model, 4 * d_model),
            nn.GELU(),
            nn.Linear(4 * d_model, d_model),
            nn.Dropout(dropout)
        )

    def forward(self, x):
        return self.net(x)


class TransformerBlock(nn.Module):
    """
    Pre-LayerNorm Transformer Decoder Block with residual connections.
    """
    def __init__(self, d_model, n_heads, block_size, dropout=0.1):
        super().__init__()
        self.ln1 = nn.LayerNorm(d_model)
        self.attn = CausalSelfAttention(d_model, n_heads, block_size, dropout)
        self.ln2 = nn.LayerNorm(d_model)
        self.mlp = FeedForward(d_model, dropout)

    def forward(self, x):
        # Pre-LN architecture: residual connection wraps normalized sub-layers
        x = x + self.attn(self.ln1(x))
        x = x + self.mlp(self.ln2(x))
        return x


class GPTLanguageModel(nn.Module):
    """
    Complete GPT-style autoregressive character-level language model.
    """
    def __init__(self, vocab_size, d_model=64, n_heads=4, n_layers=4, block_size=16, dropout=0.1):
        super().__init__()
        self.block_size = block_size
        self.token_embedding = nn.Embedding(vocab_size, d_model)
        self.pos_embedding = nn.Embedding(block_size, d_model)

        self.blocks = nn.Sequential(*[
            TransformerBlock(d_model, n_heads, block_size, dropout) for _ in range(n_layers)
        ])
        self.ln_f = nn.LayerNorm(d_model)
        self.lm_head = nn.Linear(d_model, vocab_size, bias=False)

        # Weight tying: share token embedding weights with output projection matrix
        self.token_embedding.weight = self.lm_head.weight

    def forward(self, idx, targets=None):
        B, T = idx.shape
        assert T <= self.block_size, f"Cannot forward sequence of length {T}, block size is {self.block_size}"

        # Combine token content with spatial position indices
        pos = torch.arange(0, T, dtype=torch.long, device=idx.device)
        tok_emb = self.token_embedding(idx)       # (B, T, d_model)
        pos_emb = self.pos_embedding(pos)         # (T, d_model)
        x = tok_emb + pos_emb                     # (B, T, d_model)

        x = self.blocks(x)
        x = self.ln_f(x)
        logits = self.lm_head(x)                  # (B, T, vocab_size)

        loss = None
        if targets is not None:
            if targets.dim() == 1:
                loss = F.cross_entropy(logits[:, -1, :], targets)
            else:
                loss = F.cross_entropy(logits.view(-1, logits.size(-1)), targets.view(-1))

        return logits, loss

8. Alternative Transformer Architectures: Encoders & Cross-Attention

While GPT-style models rely exclusively on masked decoders, the Transformer design space encompasses three fundamental archetypes:

flowchart TD
    subgraph ARCH ["The Three Transformer Structural Families"]
        direction TB
        F1["1. Decoder-Only (GPT, LLaMA, Mistral)<br/>• Unidirectional Causal Masking<br/>• Next-Token Generation"]
        F2["2. Encoder-Only (BERT, RoBERTa)<br/>• Bidirectional Maskless Attention<br/>• Classification & Dense Embeddings"]
        F3["3. Encoder-Decoder (Vaswani, T5, BART)<br/>• Bidirectional Input Encoder + Cross-Attention Decoder<br/>• Translation, Summarization, Seq2Seq"]
    end
    style ARCH fill:#16213e,stroke:#0f3460,stroke-width:2px,color:#fff

8.1 The Transformer Encoder (BERT-Style)

In discriminative tasks—such as sentence classification, token tagging, or extractive search—causal masking is unnecessary and counterproductive. An Encoder uses unmasked, fully bidirectional multi-head attention: token $i$ attends simultaneously to both preceding ($j < i$) and succeeding ($j > i$) tokens.

8.2 The Full Encoder-Decoder Architecture & Cross-Attention

For sequence-to-sequence translation (e.g., French $\to$ English) or document summarization, the original Vaswani et al. (2017) architecture combines an unmasked Encoder with a causally masked Decoder connected via Cross-Attention.

In Cross-Attention:

• The Queries ($Q$) originate from the Decoder’s previous layer: $Q = X_{\text{dec}} W_Q$.
• The Keys ($K$) and Values ($V$) originate from the final output representations of the Encoder: $K = H_{\text{enc}} W_K, \quad V = H_{\text{enc}} W_V$.
• The decoder dynamically attends to relevant source tokens regardless of their position in the source sentence.

9. Tokenization Paradigms & Autoregressive Decoding

9.1 Subword Tokenization: BPE & WordPiece

While character-level modeling is pedagogically pristine, modeling human language character by character results in long sequences: a 500-word paragraph spans 3,000 characters. Because self-attention has $O(T^2)$ memory and compute complexity, character-level processing becomes computationally prohibitive for books and long contexts.

Modern LLMs utilize Subword Tokenization:

• Byte Pair Encoding (BPE): Iteratively merges the most frequent pairs of bytes or characters in a training corpus until a predefined vocabulary size (typically 32,000 to 128,000 tokens) is reached.
• Common words like "the" or "learning" become single tokens. Rare words like "translatability" decompose into meaningful subword chunks: ["trans", "lat", "ability"].

9.2 Autoregressive Text Generation Strategies

During inference, given a prompt sequence $x_{1:t}$, the model produces output logits $\mathbf{z}_{t+1} \in \mathbb{R}^{|\mathcal{V}|}$. How do we sample the next token?

@torch.inference_mode()
def generate(model, prompt, max_new_tokens=20, temperature=1.0, top_k=None):
    """
    Autoregressive generation loop with temperature scaling and Top-K truncation.
    """
    model.eval()
    idx = prompt  # Shape: (1, T)

    for _ in range(max_new_tokens):
        # Crop context if it exceeds model block size
        idx_cond = idx[:, -model.block_size:] if idx.size(1) > model.block_size else idx

        # Forward pass to retrieve next-token logits
        logits, _ = model(idx_cond)
        logits = logits[:, -1, :] / max(temperature, 1e-5)  # Scale by temperature

        # Optional Top-K truncation
        if top_k is not None:
            v, _ = torch.topk(logits, min(top_k, logits.size(-1)))
            logits[logits < v[:, [-1]]] = -float('Inf')

        probs = F.softmax(logits, dim=-1)
        next_idx = torch.multinomial(probs, num_samples=1)

        # Append new token to sequence
        idx = torch.cat((idx, next_idx), dim=1)

        # Terminate early if sentinel is generated
        if next_idx.item() == stoi[special_char]:
            break

    return idx

1. Greedy Search ($T \to 0$): Always picks $x_{t+1} = \arg\max_i z_i$. Highly deterministic, but prone to repetitive loops and degenerate phrasing.
2. Temperature Scaling ($T > 0$): Modulates probability entropy via $P(x_i) = \frac{e^{z_i / T}}{\sum_j e^{z_j / T}}$. $T < 1.0$ sharpens confidence onto high-probability modes; $T > 1.0$ flattens the distribution, injecting creative variance.
3. Top-K Truncation: Filters out all tokens outside the $K$ highest-probability candidates before sampling, eliminating erratic tail tokens.
4. Top-P (Nucleus) Sampling: Accumulates tokens in decreasing probability order until their cumulative sum reaches probability threshold $p$ (e.g., $p=0.90$), dynamically adapting the candidate pool size based on model confidence.

10. Computer Vision Meets Transformers: The Vision Transformer (ViT)

In 2020, Dosovitskiy et al. published the landmark paper “An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale”, demonstrating that pure Transformer architectures can outperform state-of-the-art CNNs on computer vision benchmarks.

10.1 Image Patch Extraction as Tokenization

How do we feed a 2D continuous pixel tensor $\mathbf{x} \in \mathbb{R}^{H \times W \times C}$ into a 1D Transformer sequence model? The Vision Transformer partitions the image into a grid of non-overlapping square patches of spatial resolution $P \times P$ (typically $16 \times 16$ or $14 \times 14$):

$$ N = \frac{H \cdot W}{P^2} $$

For a standard ImageNet input of $224 \times 224$ RGB image with patch size $P=16$:

• Number of patches: $N = \frac{224 \times 224}{16 \times 16} = 14 \times 14 = 196$ patches.
• Raw patch vector length: $P^2 \cdot C = 16 \times 16 \times 3 = 768$.

In PyTorch, rather than manually slicing tensor loops, patch extraction and linear projection are computed in a single GPU operation using a 2D convolution whose kernel_size and stride are both equal to patch size $P$:

# Optimal PyTorch patch projection using strided 2D convolution
patch_size = 16
in_channels = 3
d_model = 768

patch_proj = nn.Conv2d(
    in_channels=in_channels,
    out_channels=d_model,
    kernel_size=patch_size,
    stride=patch_size
)

# Test with standard input batch: (B=1, C=3, H=224, W=224)
dummy_img = torch.randn(1, 3, 224, 224)
projected_patches = patch_proj(dummy_img)  # Shape: (1, 768, 14, 14)

# Flatten spatial dimensions into token sequence: (B, N, d_model)
tokens = projected_patches.flatten(2).transpose(1, 2)
print(f"ViT Token Sequence Shape: {tokens.shape} -> (Batch=1, N=196, d_model=768)")

10.2 The Complete ViT Pipeline

1. The Prepended [CLS] Token: Following BERT convention, ViT prepends a learnable classification parameter token $\mathbf{x}{\text{class}} \in \mathbb{R}^{1 \times 1 \times d{\text{model}}}$ to the patch sequence, expanding the sequence length from $N$ to $N+1 = 197$. Because self-attention allows all-to-all information routing, $\mathbf{x}_{\text{class}}$ aggregates holistic visual representations from all patches across layers without favoring any specific spatial coordinate.
2. 1D Learnable Positional Embeddings: Transformers have zero inherent awareness of spatial geometry. To encode 2D spatial layout, a learnable positional embedding matrix $E_{\text{pos}} \in \mathbb{R}^{1 \times (N+1) \times d_{\text{model}}}$ is added elementwise: $$ \mathbf{z}0 = [\mathbf{x}{\text{class}}; , \mathbf{x}_p^1 E; , \dots; , \mathbf{x}p^N E] + E{\text{pos}} $$
3. Transformer Encoder Processing: The resulting sequence passes through $L$ standard bidirectional Transformer Encoder blocks (LayerNorm, Multi-Head Attention, MLP).
4. Classification Head: The representation of the [CLS] token at layer $L$ ($\mathbf{z}_L^0$) is extracted, normalized via LayerNorm, and passed through a final linear layer to predict class logits: $$ \mathbf{y} = \text{Linear}(\text{LayerNorm}(\mathbf{z}_L^0)) $$

10.3 Inductive Biases: CNNs vs. Vision Transformers

11. Computational Complexity & Memory Profiling

Understanding the compute and memory profile of the Transformer architecture is crucial for systems engineering:

11.1 Self-Attention Quadratic Scaling

Let $T$ denote sequence length and $d$ denote embedding dimension:

1. Projection Matrices ($Q, K, V$): Computing $X W_Q, X W_K, X W_V$ requires $3 \times (T \cdot d \cdot d) = 3 T d^2$ FLOPs.
2. Attention Score Matrix ($Q K^T$): Multiplying $(T \times d)$ by $(d \times T)$ requires $T^2 d$ FLOPs.
3. Softmax Normalization: Computing exponentials and row sums requires $O(T^2)$ operations.
4. Value Aggregation ($A V$): Multiplying $(T \times T)$ attention matrix by $(T \times d)$ requires $T^2 d$ FLOPs.
5. Output Projection: Multiplying by $W_O$ requires $T d^2$ FLOPs.

$$ \text{Total Self-Attention FLOPs} \approx 4 T d^2 + 2 T^2 d $$

Architectural Bottleneck: When context length $T \gg d$, the $2 T^2 d$ term dominates. In contemporary LLMs extending to 32K or 128K context windows, naive attention matrix storage requires $T \times T \times \text{heads} \times 2\text{ bytes}$ of VRAM, which triggered the invention of memory-efficient GPU kernel fusions like FlashAttention-2 (Dao, 2023).

12. Summary & Key Takeaways

1. The Fundamental Shift: Transformers replaced recurrent sequential dependencies ($O(N)$ path length) with self-attention ($O(1)$ pairwise path length), unlocking full GPU tensor parallelism.
2. Self-Supervised Autoregressive Formulation: Training language models requires no human annotations; raw text sequences are sliced into expanding causal prefixes paired with immediate next-token labels.
3. Scaled Dot-Product Necessity: Dividing query-key dot products by $\sqrt{d_k}$ prevents logits from entering extreme softmax saturation where gradients vanish.
4. Causal Masking: Adding an upper-triangular $-\infty$ mask ensures autoregressive decoders cannot peek into future tokens during training.
5. Layer Normalization Independence: Unlike Batch Normalization which computes statistics across samples and breaks on variable-length text, Layer Normalization computes statistics across feature channels per token, operating identically during training and inference.
6. Vision Transformers (ViT): By partitioning 2D images into $P \times P$ pixel patches and projecting them linearly into 1D token embeddings, Transformers achieve state-of-the-art computer vision performance with minimal inductive bias.
